Products catalogue

New generation trans-illuminated road signs Illuminated with power LEDs that guarantees low power consumption and life of over 100,000 hours. They have an extremely thin but robust structure. Aesthetically appealing, lightweight and easy to install, champion in terms of maintenance savings.

New generation trans-illuminated road signs. Illuminated with power LEDs that guarantee low power consumption and life of over 100,000 hours. They have an extremely thin but robust structure. Aesthetically appealing, lightweight and easy to install, champion in terms of maintenance savings

New generation trans-illuminated road signs. Illuminated with power LEDs that guarantee low power consumption and life of over 100,000 hours. They have an extremely thin but robust structure. Aesthetically appealing, lightweight and easy to install, champion in terms of maintenance savings

Led evacuation light which, installed at a height of approximately one meter and with maximum spacing of 15m, creates an illuminated path for the evacuation route in the event of an accident in the tunnel. Possibility of power supply by reducing the light intensity by 50%. It can also be used as an optical guide for normal vehicle flow. Power supply 24 Vdc.

Fog delineator light for application on guard-rail and on new jersey. It allows to highlight curves and junctions, especially in case of poor visibility. Made for a simple and quick installation on guard-rail, it allows to increase road safety at absolutely competitive costs compared to previous equipment. Power supply 24 or 48 Vdc.

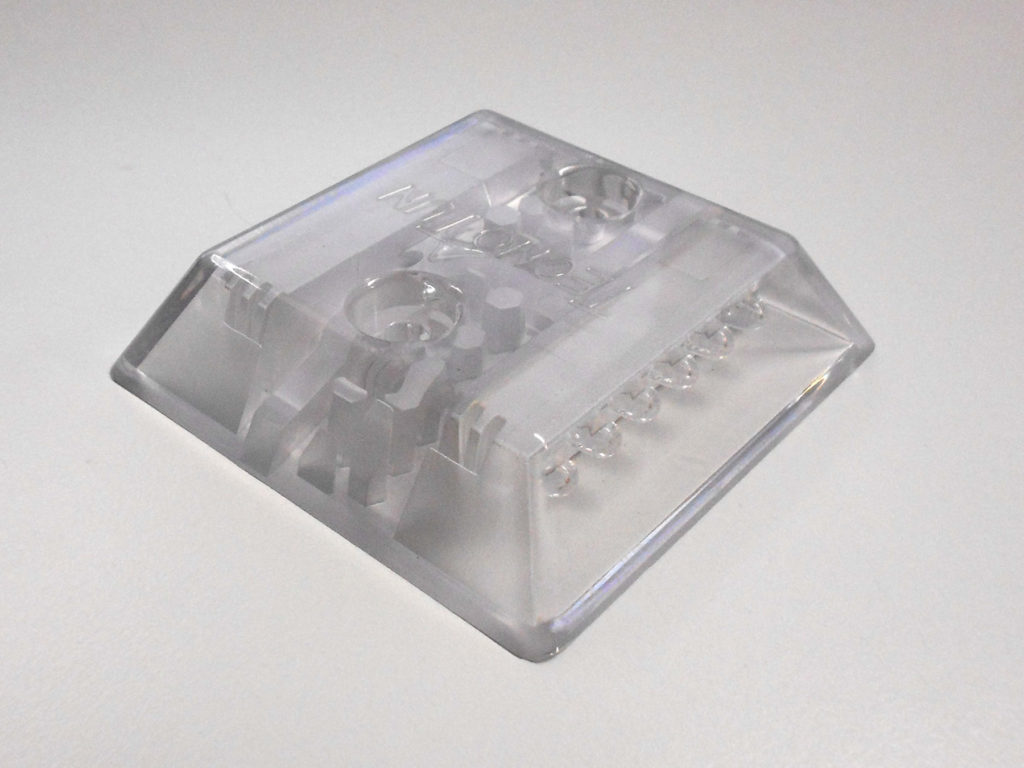

Applied to the limit of the carriageway, it highlights the limit itself and increases the perception of the road’s progress. Two-sided on two-way roads, they have a row of red Leds visible to the right of the roadway, while a row of white Leds on the opposite side of the road. Single-sided amber in one-way streets, highlight both carriageways. Road safety increases significantly in the evening and in the presence of poor visibility. Power supply 24 Vdc.

LED light guide for the lighting of escape routes in the event of a tunnel accident, for outdoor installation on New Jersey. In the event of a fire in a short time, smoke invades the tunnel vault and obscures the illumination of the lighting bodies; in this case the light guide, located about one meter from the road surface on New Jersey, provides the necessary light on the evacuation path ensuring a safety operation. The apparatus is made by means of LED microlights fitted in an Aisi304 stainless steel pipe in 3 meter elements that can be quickly joined with el. connectors and mechanical joints. Power Supply 24 Vdc.

LED light guide for the lighting of escape routes in the event of a tunnel accident, for outdoor installation on New Jersey. In the event of a fire in a short time, smoke invades the tunnel vault and obscures the illumination of the lighting bodies; in this case the light guide, located about one meter from the road surface on New Jersey, provides the necessary light on the exodus path ensuring safety in the evacuation operation. It can also provide indications on the escape direction through the sequential lighting of green LEDs. They are products that comply with stringent safety standards in the tunnel. The apparatus is made by means of Micro Leds fitted in an Aisi304 stainless steel pipe in 3 meter elements that can be quickly joined with connectors and joints. Power supply 24 Vdc.

Recessed luminous guide for modular New Jersey, predisposed to such installation. The light guide illuminates the escape route according to the Italian Guide Anas, and also provides a sense of escape through the lighting of green LEDs in a sequential mode. Power supply 24 Vdc.

SOS emergency cabinets for tunnel, made of AISI 304 / 316L stainless steel with 1/2/3/4 compartments, both vertical and horizontal, for housing communication systems Voip, plate / PLC  switch housing, fire extinguishers, and Uni45 hose reel. Alarms for opening doors, fire extinguishers and anything else required according to customer specifications are foreseen. The cabinets can include the VOIP hands-free telephone with 1, 2, 3 or 4 keys.

SOS emergency cabinets for tunnel, made of AISI 304 / 316L stainless steel with 1/2/3/4 compartments, both vertical and horizontal, for housing communication systems, plate / PLC / switch housing, fire extinguishers, and Uni45 hose reel. Alarms for opening doors, fire extinguishers and anything else required according to customer specifications are foreseen. The cabinets can include the VOIP hands-free telephone with 1, 2, 3 or 4 keys.

SOS emergency cabinets for tunnel, made of AISI 304 / 316L stainless steel with 1/2/3/4 compartments, both vertical and horizontal, for housing communication systems, plate / PLC / switch housing, fire extinguishers, and Uni45 hose reel. Alarms for opening doors, fire extinguishers and anything else required according to customer specifications are foreseen. The cabinets can include the VOIP hands-free telephone with 1, 2, 3 or 4 keys.

In the event of an accident in the tunnel it is important to identify quickly and without uncertainty the escape route to the emergency exits; this illumination system has the dual function of increasing the visibility of the exodus door by means of luminous signals of green color and of illuminating the door itself with white light. Composed of a tubular system equipped with a row of green LED light points that highlight from a considerable distance and in the presence of limited visibility the escape door, while another series of white light spots illuminate the door itself. In the event of an accident, in order to increase the visibility of the escape door, the green light may be flashing. Power supply 24 Vdc.

“No-illuminated tunnel” warning sign, normally invisible to the user but with a contact signal rotates 90 ° around its support pole and emitting an intermittent light signal. Self-powered and equipped with 5 days of autonomy, once the alarm has ceased, it automatically returns to the rest position.

External signaling sign indicating “tunnel not illuminated” normally with white signal (without writing), but which, when necessary, rotating the various internal prisms, provides the expected indication.

Variable message panels for the management of information on roads and in tunnels. They are made using state-of-the-art LEDs to guarantee high reliability, high optical performance, maximum visibility and readability in any environmental context. All LED displays used to provide information in the field of road comply with the European standard CEI UNI EN 12966-1. Variable message panels are also realized according to specific customer needs.

Axial electric fan, made of AISI 316L, specific for tunnel use, complete with silencers, completely reversible, resistant for 2 hours at 400 ° C.

Jet Fan speed ​​variator for axial fans for tunnel, installable a few meters from the fan, and able to operate for 2 hours at 400 ° C.

Axial fans specifically designed to create the right overpressure in the filter rooms connected to the escape routes, and in the By-pass rooms of the double-barreled tunnels. The devices can be integrated with fire dampers and overpressure dampers.

Sliding fire door L 3500 x H 4000 mm consisting of two sliding doors made in Aisi 316L steel; specifically designed and sized to be laid inside road tunnels and in particular on motorways, such as in bypasses between two tunnels where the piston and suction effect due to the flow of intense vehicular traffic and forced ventilation systems, requires performance mechanics much higher than traditional applications in industrial or commercial structures.

ElectroChemical sensors CO NO NO2 to determine the presence of harmful gases in the tunnel. In addition, a point sensor for measuring the speed and direction of the air in the tunnel. The anemometers can be point type or barrier type.

Optical opacimeter, complete with transmitter / receiver, suitable for the measurement of visibility in road tunnels. The apparatus also includes the electronic control unit for the supply of all the required data in different ways.

Integrated system in a single cabinet to analyze the tunnel’s environmental data such as air speed and direction, optical opacimeter, CO, CO2, Nox, Temp., Etc …

System for radio coverage in tunnels for the rescue and emergency services of the Fire Brigade, Police, and other safety authorities. Systems can be supplied also according to TETRA technology.

Sound diffusion systems based on the philosophy of IP, and distribution in tunnels via optical fiber, switches and VOIP communication units. Each VOIP unit can drive an amplifier with different diffusers distributed on the wall, depending on the system.

CCTV systems suitable for recording and analyzing traffic images inside tunnels to determine the different traffic critical situations. AID Automatic Incident Detection.

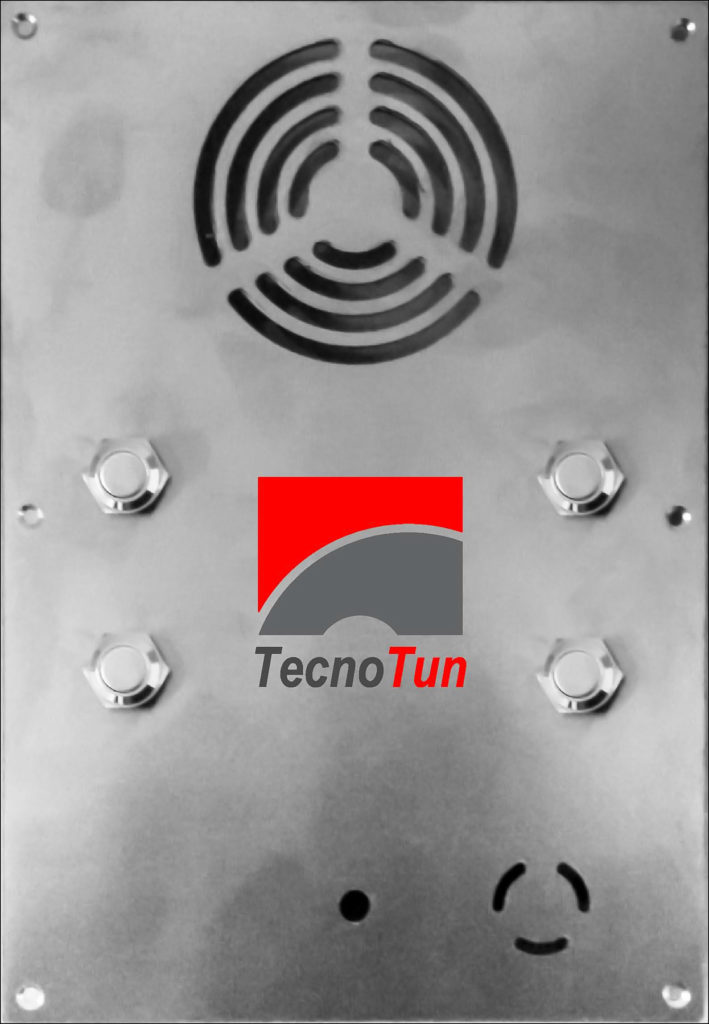

Hands-free VOIP telephone plate for road and tunnel emergency use.

IP SOS callbox for outdoor equipped with VOIP emergency telephone for hands-free use and 1,2,3 or 4 keys for emergency call. The call boxes can also be equipped with other accessories such as cabinet connection FO, Video Camera, various sensors, etc …

Module designed to monitor a zonal length of analogue cable for fire detection in the tunnel, with the determination of the exact place where it takes place. The systems can be supplied with thermosensitive cable.

Automation system and Scada for tunnels according to the Anas and Motorway standards.

Aluminum alloy box of small dimensions, suitable for lighting systems of safety routes in tunnels, fire-resistant according to CEI EN 50362 Standard.  Inside the box there is a special terminal block with insulation in highly fire-resistant ceramic material.

Aluminum alloy box, fire resistant, for single or multipolar cables, suitable for tunnel lighting systems and in general for copper cables in railway and road tunnels.  Inside alloy box there is a special terminal block with insulation in highly fire-resistant ceramic material.

The protection of the derivative power supply phase is achieved through a ceramic fuse-holder base complete with fuses.

The outgoing feeder can be prepared for outgoing cable according to the customer’s needs or a pre-wired plug socket, 2P + E 16 A 230 V.

Aluminum alloy box, fire resistant, for single or multi-pole cables, suitable for tunnel systems and in general for copper cables in railway and road tunnels.

Inside aluminum box there is a special terminal block with insulation in highly fire-resistant ceramic material.

Normally supplied with 3 Poles, but adaptable to any different project requirement.
